& does relevant recommendations: [in a flexible rubber joint, the flexible rubber joint, non-metallic compensator fabric 】 is gongyi city full state pipeline equipment co., LTD. The main business of our company has been made as a special equipment manufacturing license and ISO quality management system certification of qualified companies, the company management concept: the factory in order to "customer needs is our goal" principle, wholeheartedly for the customers with excellent products, reasonable prices, fast delivery cycle, professional technical support and perfect after-sales service. In the future, full state is full of confidence and hope, was determined in a more high quality brand and good service, sincere cooperation with customers at home and abroad, to do the northern area of the thermal compensation smoke duct equipment industry's first brand.



Universal hinge performance parameters of corrugated compensator
1, the working pressure (p) : 0.1 MPa or less (design blasting pressure 0.35 MPa or higher);
2, the use of temperature (t) : 0 ~ 350 ℃
3, the structure of the bellows: austenitic stainless steel double-layer structure, the inner 0 cr17ni14mo2, outer 0 cr18ni9 (GB3280)
Model: our factory produced DN100 - DN6000
The level of pressure: 0.1 Mpa to 2.5 Mpa
Connection mode: 1, the flange connection type; 2, to take over the connection type.
Products Angle to the compensation amount, plus or minus 4 to 9 mm

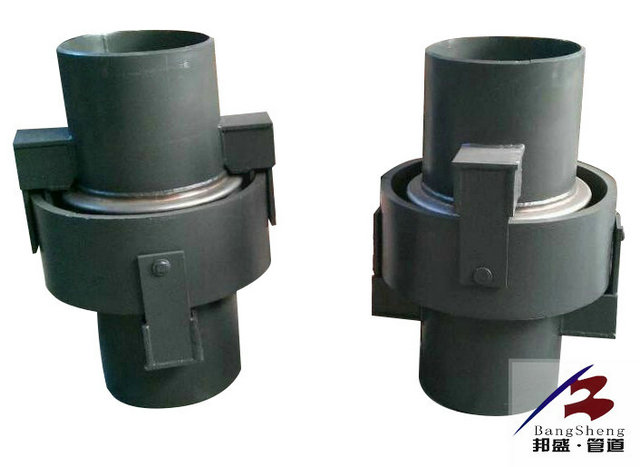

Universal hinge corrugated compensator is introduced
Universal hinge corrugated compensator can absorb any direction of displacement, at the same time to absorb the axial displacement, lateral displacement X Y, should satisfy the X XO, or less Y yukio okamoto, or less. The parameters listed in the table of axial offsets are mainly compression displacement, angular displacement of the pipeline to make up for any plane, generally installed horizontal or vertical feeding pipe of the entrance to the burner. Specifications and series of DN200 to 24 "), outside of the specifications of the series, another order to manufacturer.
Universal hinge corrugated compensator is a universal link, to each other in universal ring around the two vertical hinge structure, so it can absorb any flat angular displacement, can absorb the displacement, often have two or three combination, feeding pipe is mainly used for power plant boiler, absorption of boiler furnace thermal expansion downward
Universal hinge corrugated compensator can absorb any direction of displacement, the components are usually installed in the burner on the entrance to the horizontal or vertical feeding pipe, specifications and series of DN200 to 24 "), the series of specifications, can be another order to our factory.
